In this guide, we’ll explore the powerful effects engine built into the Yamaha MG06X audio mixer.
From turning the effects engine on to navigating through the six different effects, we will cover everything you need to create professional-quality audio.
Let’s dive in and understand how to optimize your Yamaha MG06X for the best sound experience.
Equipment Setup
Before we delve into the effects engine, it’s crucial to understand the equipment setup as a foundation.
- Microphone: I use a Rode NT1 connected to the first channel of the audio mixer.
- Gain and Level Settings: Gain and levels are adjusted so my peak hit around 0 dB at my loudest moments.
- Phantom Power: Activated for the condenser microphone to function correctly.
- Effects: Initially turned off for a clean slate.
For those interested in the specifications or pricing of the gear used in this tutorial, links are provided down below.
Turning On the Effects Engine
Step 1: Engaging the Effects Send
To activate the effects engine on the Yamaha MG06X:
- Effects Button: Press the effects button near the level knob, which serves as the effects send for each channel. Note that:
- Effects turned on/off for channels 1 and 2.
- Channels 1 and 2 can’t control the effect level separately
- Effects cannot be applied to channels 3/4 or 5/6.
For this demonstration, I will engage the effects on channel 1 only.
Step 2: Adjusting the Effects Return
Although the effects send is engaged, you won’t hear any effects until the Effects Return is adjusted. By turning up the effects return, the effects engine becomes audible.
Understanding the Effects Engine

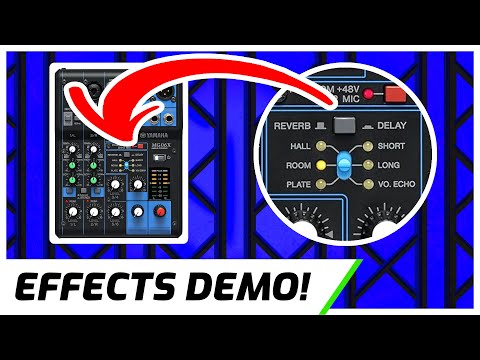

The effects engine on the Yamaha MG06X is divided into two main categories: Reverb and Delay. Each category offers three different effects.
Selecting Effect Types
- Reverb or Delay: Decide whether you want to use reverb or delay.
- Switch Effects: Use the blue switch to toggle between the available options within your selected category.
Remember, you can only apply one effect type at a time across both channels. If you choose reverb, both channels will use the same reverb effect, and similarly for delay.
Exploring the Reverb Effects
Let’s listen to each reverb effect available on the Yamaha MG06X:
- Hall Reverb: Provides a spacious reverb, mimicking the sound of a large hall.
- Room Reverb: A more intimate reverb effect that simulates the acoustics of a smaller room.
- Plate Reverb: Offers a classic sound, reminiscent of vintage plate reverb units.
Exploring the Delay Effects
Now, let’s move on to the delays:
- Short Delay: A quick, repeated echo that adds subtle depth to the audio.
- Long Delay: An extended echo creating a more pronounced repetition.
- Echo: Falls between the short and long delay, offering a balanced and versatile repeat effect.
Final Thoughts
With a comprehensive understanding of the effects engine, you can now effectively use the Yamaha MG06X audio mixer to enhance your sound. Whether you’re working with reverb or delay, the ability to fine-tune and apply these effects will elevate your audio projects to a professional level.
