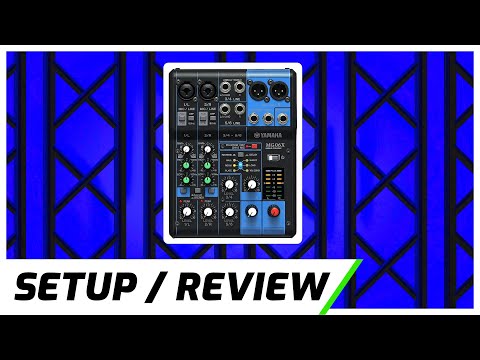

A Complete Guide to Setting Up Your Yamaha MG06X Audio Mixer
The Yamaha MG06X is a compact but powerful audio mixer perfect for various uses. Whether you’re a musician, DJ, or just want to organize karaoke at home, this mixer can handle it all.
In this post, you’ll learn how to set up your MG06X correctly. I’ll walk you through connecting it to an external recorder, powered speaker, different types of microphones, and a stereo line level input source. Let’s get started.
Initial Setup – Reset Your AG06X
Before diving into the connections, ensure your mixer is set up correctly:
- Turn all white and red knobs down.
- Position all green knobs straight up at 50%.
- Make sure every button, except the power button, is in the up position.
Connecting Outputs
Step 1: External Recorder
At the top corner, you’ll see XLR and quarter-inch outputs. You can use all four simultaneously. I’ll start by connecting a 1/4″ cable to the left 1/4″ TRS output. This will go to the external recorder.
Step 2: Powered Speaker
Next, connect the right XLR stereo output to your powered speaker. It doesn’t matter whether you’re using a small desktop speaker or a larger one at a live event—the connection method is the same. Connect the female end of the XLR cable to the output, and the other end to the back of the powered speaker.
Turn on your powered speaker and adjust the volume.
Step 3: Adjusting Main Stereo Output
Turn the main stereo output knob to the Zero/Unity (triangle) position. This is about 75% up and is the best starting point for your mixer.
Connecting Input Sources
Step 1: Music Source
To test all outputs and the mixer’s functionality, connect a music source. Use a cable that converts a headphone jack to 1/4 inch mono TS jacks. Attach one end to your phone and the other to stereo input 5/6. Start playing music to ensure everything is working. This method works for turntables, laptops, or beat machines.
You may need a USB-C or Lighting to 1/8″ TRRS Adapter, I’ve included links below.
Step 2: Dynamic Microphone
For a dynamic microphone, like the Behringer XM8500, connect an XLR cable to channel one. Adjust the level knob to zero Unity (triangle) and turn up the preamp until the microphone’s loudest moments hit between -3 and 0 dB.
Microphone Settings
- Pad Button: Use this if the peak light indicates the signal is too loud. It lowers the input by 26 dB.
- High Pass Filter (HPF): Engaging this will remove frequencies below 80 Hz, which is useful for vocal mics.
- EQ Settings: Adjust the high and low frequencies using the green knobs.
- Effects: Turn on effects and use the effects return knob to hear reverb or delay.
Step 3: Condenser Microphone
Condenser microphones require 48 volts of phantom power. Connect an XLR cable to channel two. Adjust the level knob and preamp as you did for the dynamic mic. Don’t forget to turn on the phantom power switch to activate the microphone.
Additional Features
- Mono/Stereo Button: This button does not change the mixer’s entire output. It only affects channel one and two, making them left and right for stereo sources like digital pianos or drum machines.
- Effects Options: Choose between hall, room, or plate reverbs, or short, long, or echo delays using the effects engine.
- EQ Adjustments: Tweak the frequency response of your microphones to match the environment or your needs.
Final Thoughts
The Yamaha MG06X is a versatile little audio mixer that will simplify your setup whether for live performances or home recording.
The only drawback is the lack of USB connectivity for direct computer recording.
However, it excels for sub-mixing tasks and simple setups.
